Optical Highway to GEO: China’s Experiment with a Laser Communication Link

Chinese scientists tested communication from Earth with a satellite at a distance of 40,740 km. How does this affect the development of distant orbits and telecommunications in general?

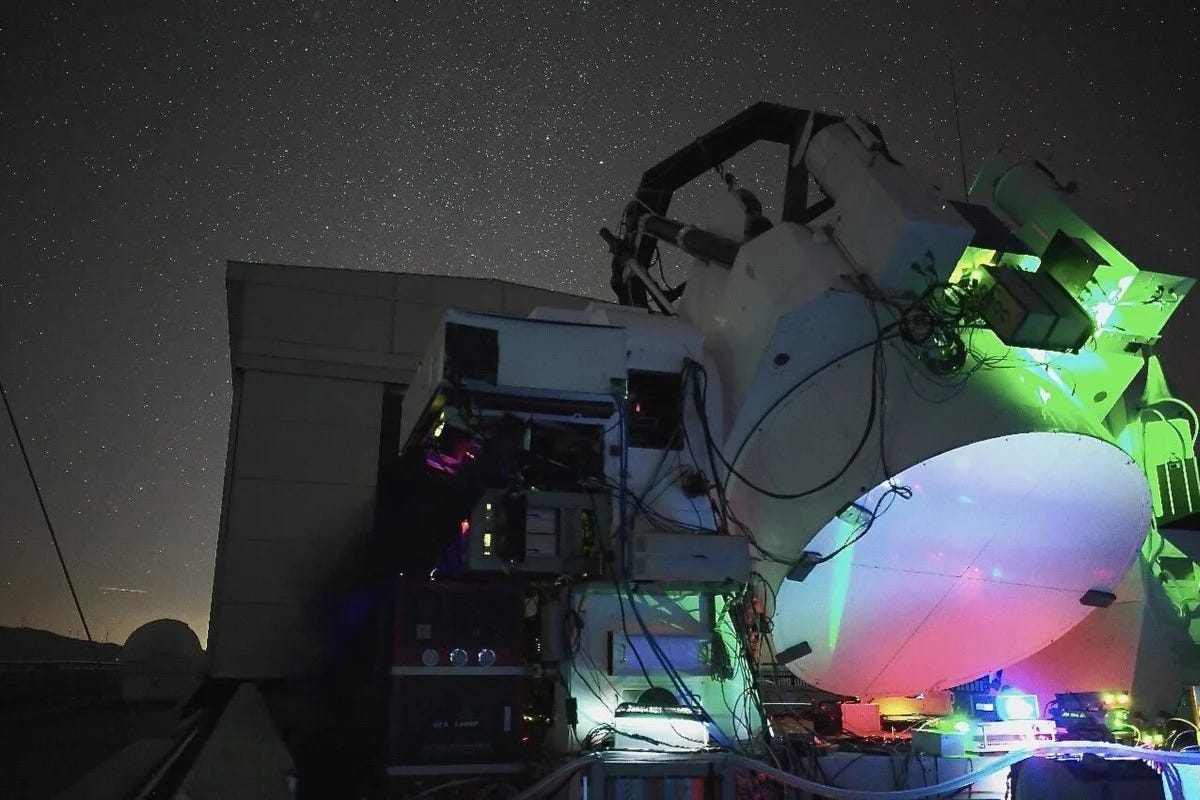

In China’s optical space communication program, an experiment has taken place that should be considered not as a local engineering result but as an element of the gradual formation of orbital optical infrastructure. A ground station in Yunnan Province established a stable two-way laser link with a satellite in geosynchronous orbit, providing data transmission at a rate of about 1 Gbit/s over a distance of approximately 40,000 km.

We have already written quite a lot about laser communication with satellites and even about connecting laser modems from aircraft to satellites. The key aspect of this news is not the very fact of a gigabit laser link from the ground—such speeds in free-space optical communication have long been demonstrated in experimental systems.

The experiment was organized by the Institute of Optics and Electronics of the Chinese Academy of Sciences, with the participation of the Beijing University of Posts and Telecommunications and the China Academy of Space Technology. The maximum distance of the two-way link was 40,740 km.

Another aspect appears more significant: the duration of stable channel operation and the speed of link acquisition. According to the researchers, establishing the optical link took about four seconds, after which the system could maintain data transmission for more than three hours.

For GEO distances, this is a non-trivial result, since atmospheric turbulence and pointing accuracy remain the main limiting factors for ground-to-orbit optical communication.

Pointing Accuracy and Atmospheric Optics

The configuration tested in the experiment is based on a combination of several technological components:

• high-precision tracking systems

• adaptive optics to compensate for atmospheric distortions

• beam stabilization algorithms

For a GEO channel, the geometry of the task is particularly strict: even microradian pointing errors lead to signal loss. In practice, this means the need to stably maintain a narrow optical beam on an object located tens of thousands of kilometers away while the beam passes through a turbulent atmosphere.

For this reason, not only the transmission speed matters, but also the system’s ability to quickly reacquire the link and maintain it for long periods of time.

GEO as a Node of an Optical Network

If this result is viewed in a broader context, it becomes evident that China is consistently moving toward the creation of a multi-layer space network with optical inter-satellite links.

In this architecture, geostationary orbit has the potential to become a key transit layer. GEO spacecraft could serve as backbone nodes that aggregate traffic from low-Earth-orbit constellations and transmit it to Earth via high-capacity optical channels.

Such a scheme differs significantly from the traditional architecture of satellite communications, where most spacecraft operate as isolated relay platforms.

The Bandwidth Problem

The growth of data volumes from orbit is gradually becoming a systemic constraint for space systems. Earth observation satellites, radar platforms, and new generations of scientific spacecraft generate amounts of information that are increasingly difficult to transmit via traditional radio channels.

In this sense, the transition to optical communication is not so much a technological experiment as a necessary step in the development of space infrastructure.

Laser links make it possible to:

• increase bandwidth by an order of magnitude

• significantly narrow the radiation beam pattern

• minimize mutual interference between systems

These factors make optical communication practically the only viable option for future orbital networks.

A Long Trajectory

It is equally important that technologies developed for GEO channels can be directly scaled for interplanetary missions.

Optical systems are considered a foundational technology for high-speed communication with spacecraft operating beyond near-Earth space—on lunar orbit, in cislunar space, and farther out.

Thus, experiments of this kind should be viewed as a stage in the formation of a global optical infrastructure that will gradually replace radio-frequency channels in high-performance space systems.
